SimulationExperimentView plugin

The SimulationExperimentView plugin can be used to run CellML (i.e. a system of ODEs or DAEs) and SED-ML files, as well as COMBINE archives. However, OpenCOR only supports a subset of SED-ML, so only SED-ML files and COMBINE archives generated by OpenCOR are guaranteed to work.

The following topics are covered:

Open a CellML file

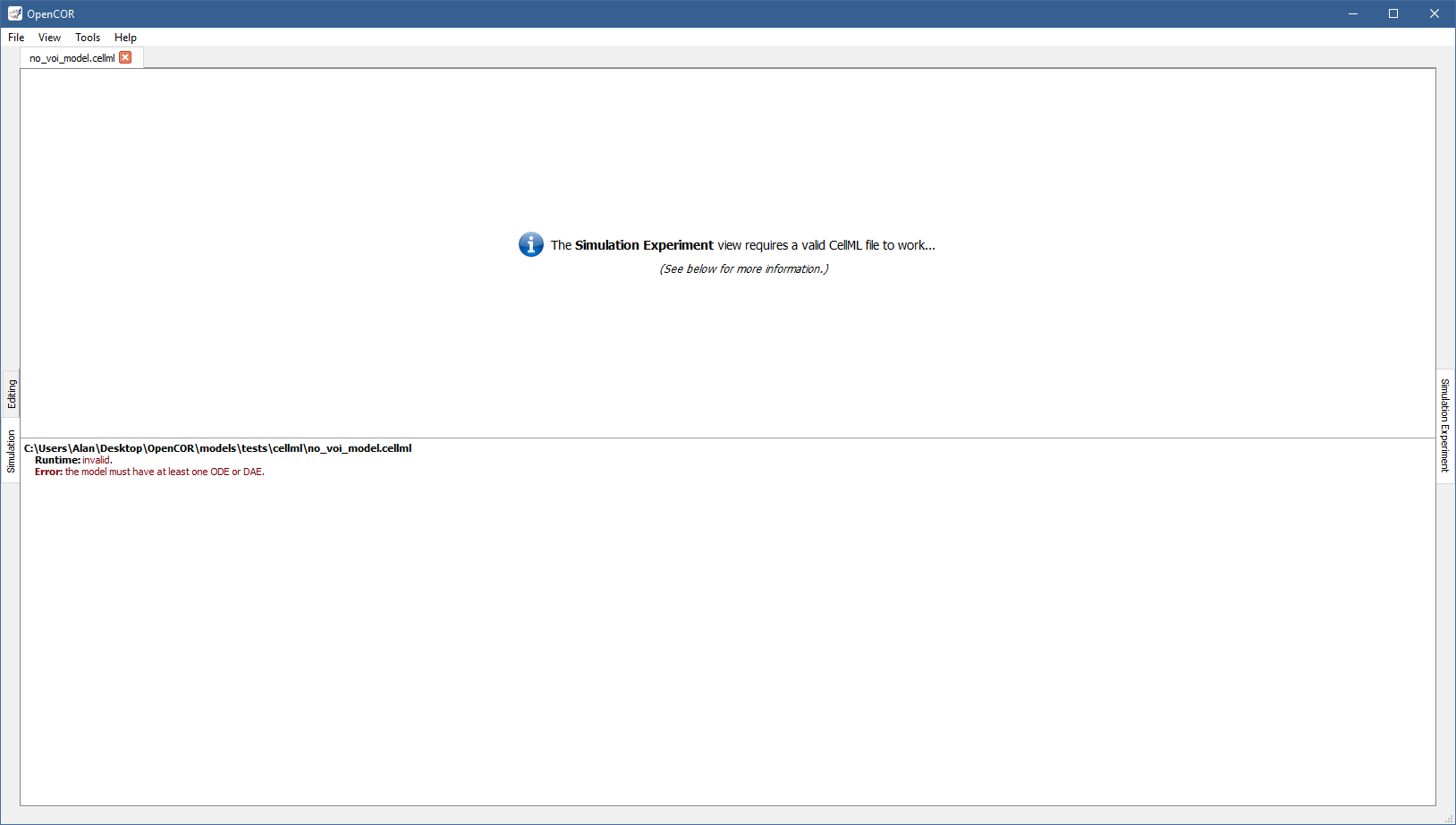

Upon opening a CellML file and switching to the Simulation Experiment view, OpenCOR checks that it can be used for simulation. If it cannot, a message describing the issue is shown:

../../_images/SimulationExperimentViewScreenshot01.png

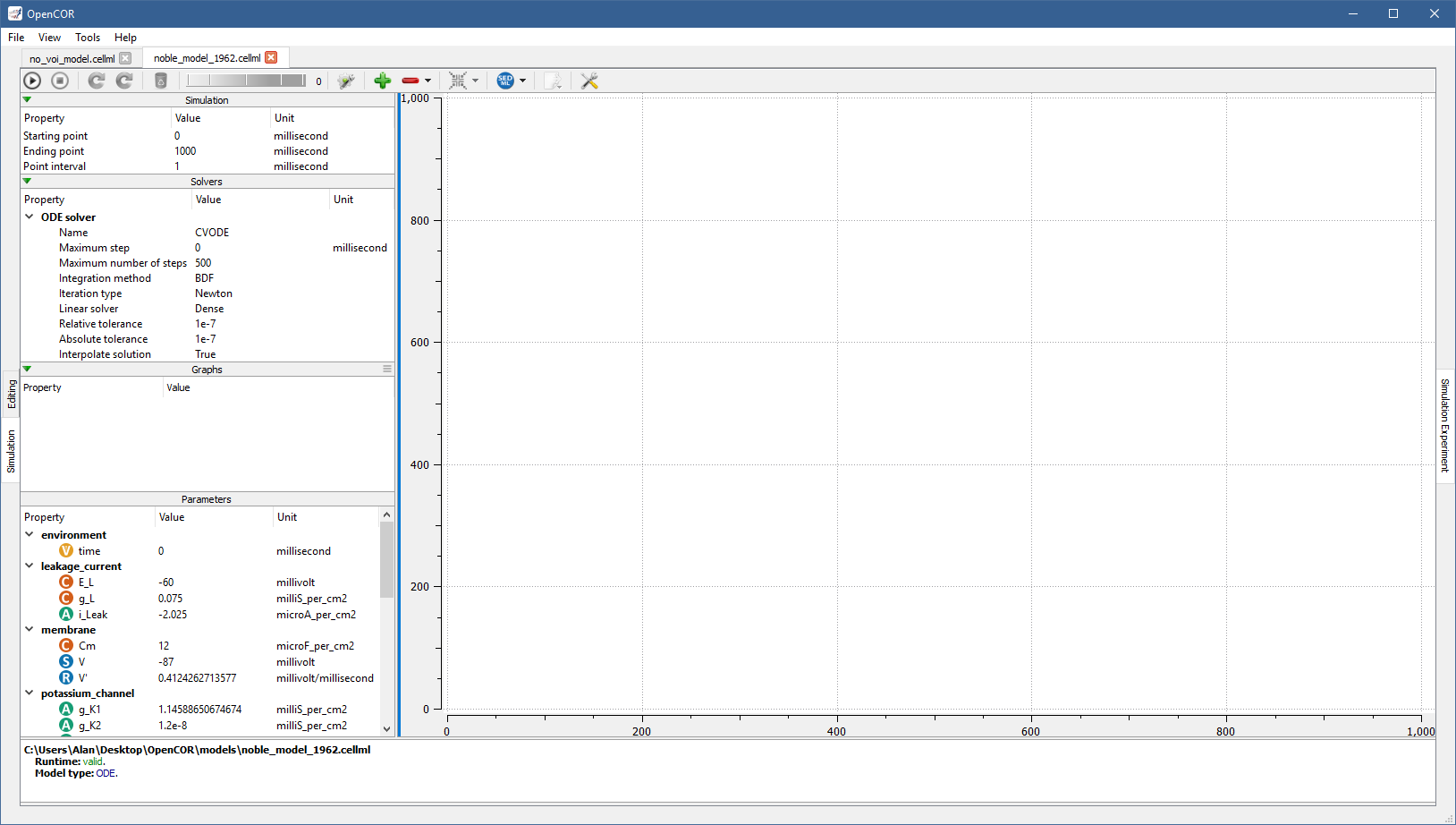

On the other hand, if you open a valid CellML file (e.g., [OpenCOR]/models/noble_model_1962.cellml, which is shipped with OpenCOR), the view looks as follows:

../../_images/SimulationExperimentViewScreenshot02.png

It consists of two main parts, the first of which allows you to customise the simulation, the solver(s) and the model parameters, as well as to specify which graphs to plot. The second part is used to plot the requested graphs. In the Parameters section, all the model parameters have an icon associated with them, to highlight their type:

iconVoi Variable of integration
iconConstant (Editable) constant
iconComputedConstant Computed constant
iconState (Editable) state
iconRate Rate
iconAlgebraic Algebraic

Simulate an ODE model

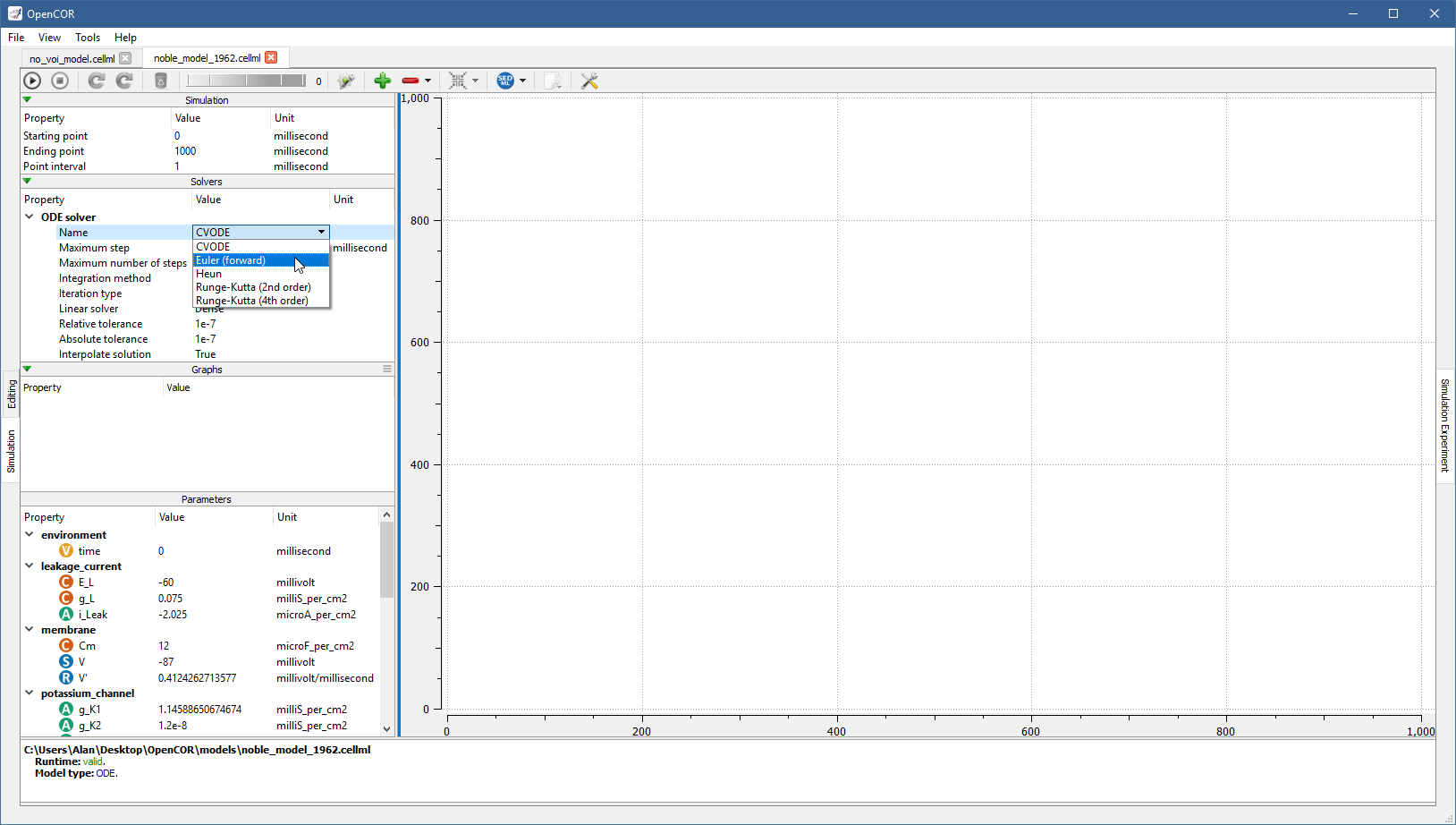

To simulate a model, you need to provide some information about the simulation itself: its starting point, ending point, and point interval. Then, you need to specify the solver(s) that you want to use. The solvers available to you depend on which solver plugins you selected, as well as on the type of your model (i.e. ODE or DAE). If you are dealing with an ODE model and all the solver plugins are selected then CVODE, forward Euler, Heun, and the second-order and fourth-order of Runge-Kutta are available to you:

../../_images/SimulationExperimentViewScreenshot03.png

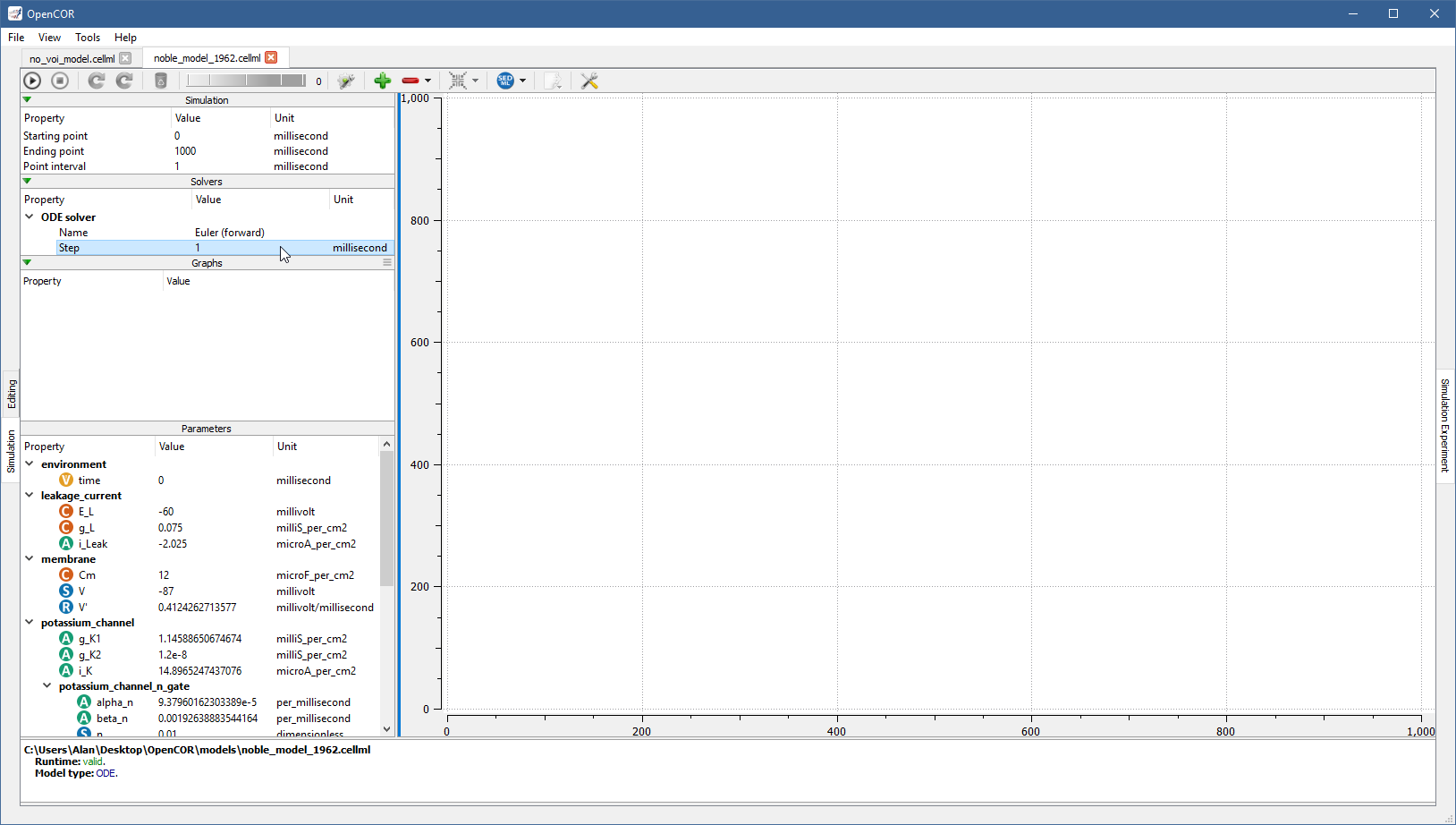

Each solver comes with its own set of properties, which can be customised. For example, if you select Euler (forward), you see that it has only one property (Step):

../../_images/SimulationExperimentViewScreenshot04.png

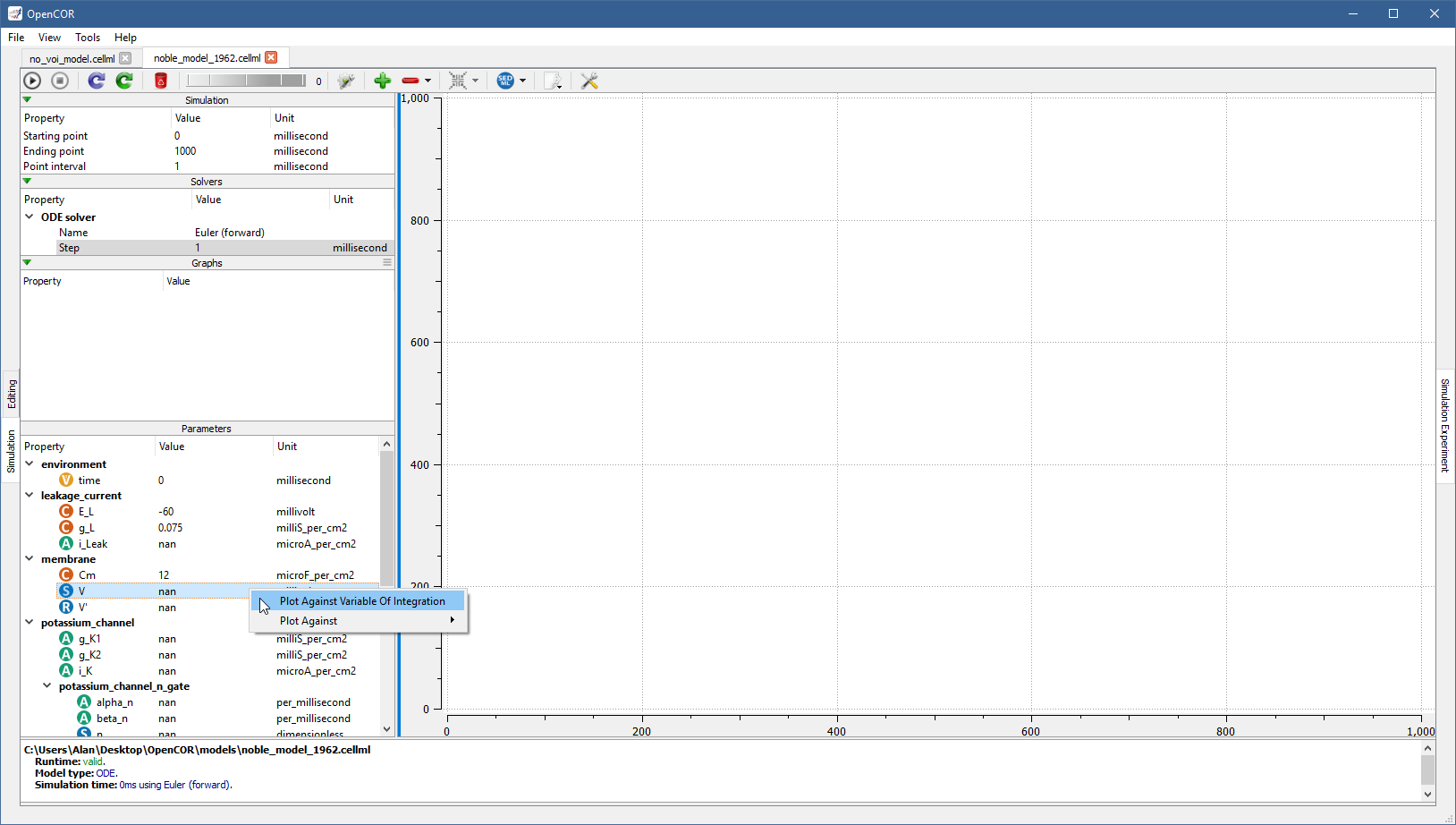

You can start the simulation by pressing F9 or by clicking on the oxygenActionsMediaPlaybackStart button. Then, or before, you can add one or several graphs to be plotted. All the model parameters are listed to the bottom-left of the view, grouped by components in which they were originally defined. To add a graph, right click on a model parameter and select against which other model parameter you want it to be plotted. For example, to create a graph for V (from the membrane component) against the variable of integration (i.e. time since the simulation properties are expressed in milliseconds), you would do the following:

../../_images/SimulationExperimentViewScreenshot05.png

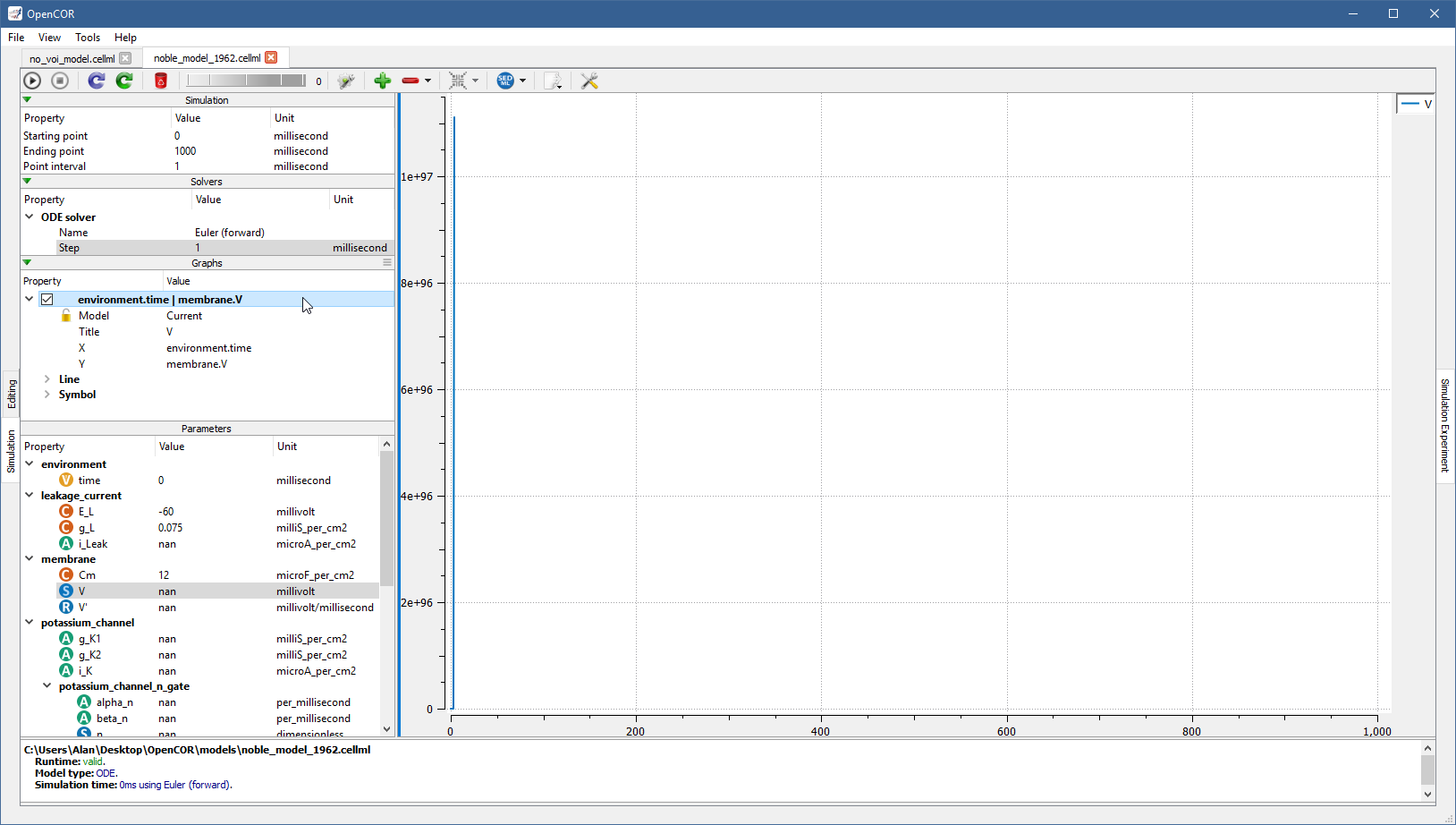

From there, you can get the information associated with the graph by double clicking on it:

../../_images/SimulationExperimentViewScreenshot06.png

The Model property is used to associate the graph with a particular file. Its default value of Current means that the graph is associated with the current file. However, you can explicitly associate it with another file. A oxygenStatusTaskAttention icon is shown next to the check box when an association cannot be done and next to the X and/or Y properties to highlight which model parameter(s) could not be found in the other file. An oxygenStatusObjectUnlocked icon indicates that the graph is not locked, i.e. its Model property has a value of Current, while a oxygenStatusObjectLocked icon is used when a graph is associated with a specific file. The X and Y properties can be modified either by editing their value or by right clicking on them and selecting another model parameter from the context menu, which can also be used to add or remove a graph, as well as select or unselect the current graph or all the graphs.

Back to the simulation, you can see that it failed with several model parameters having a value of nan (i.e. not a number). This is because the solver is not properly set up: its Step property is too big. If you set it to 0.01 milliseconds, reset all the model parameters (by clicking on the oxygenActionsViewRefresh button), clear the simulation data (by clicking on the oxygenActionsTrashEmpty button), and restart the simulation then you get:

../../_images/SimulationExperimentViewScreenshot07.png

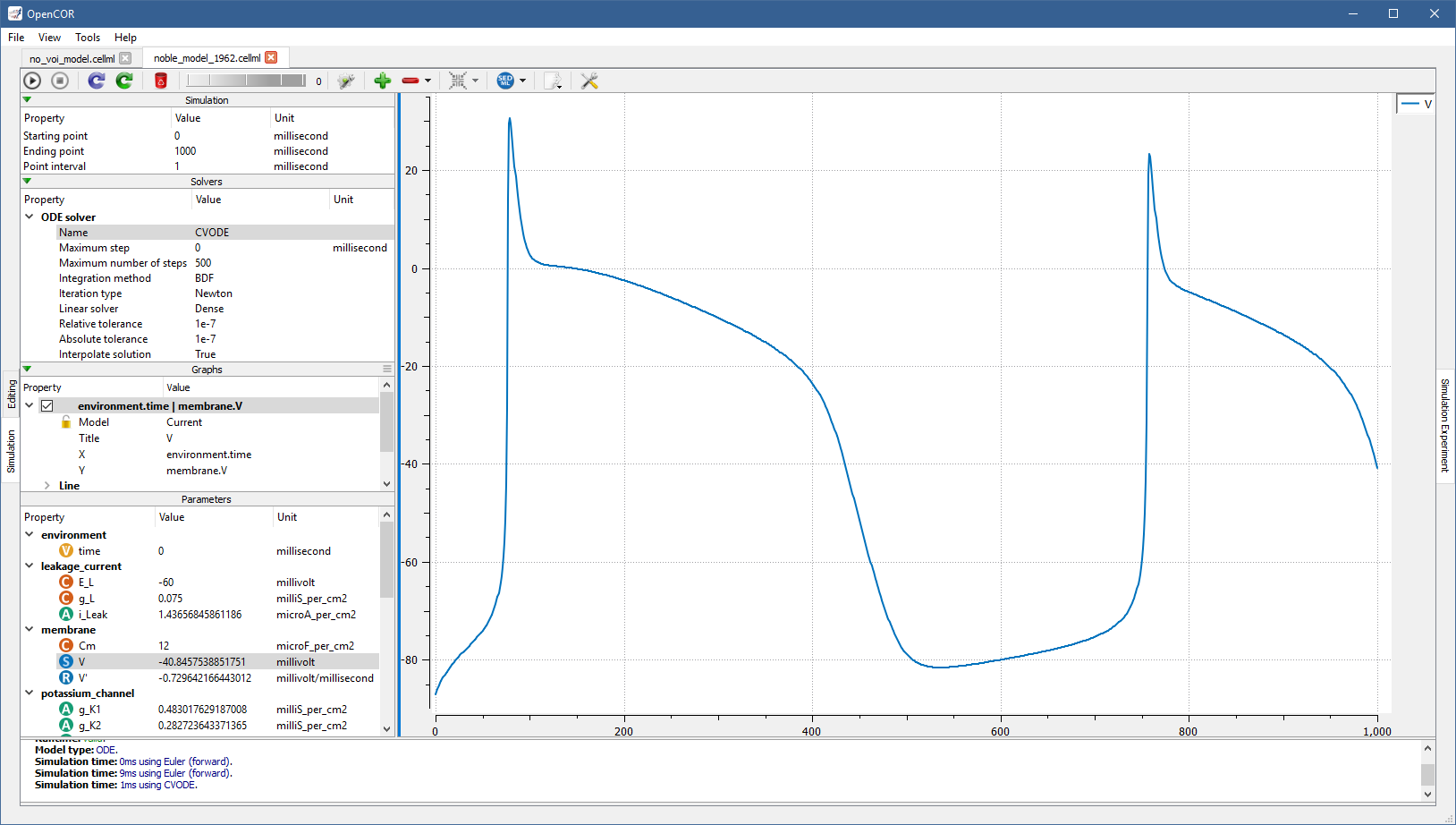

Roughly the same trace can be obtained using the CVODE solver:

../../_images/SimulationExperimentViewScreenshot08.png

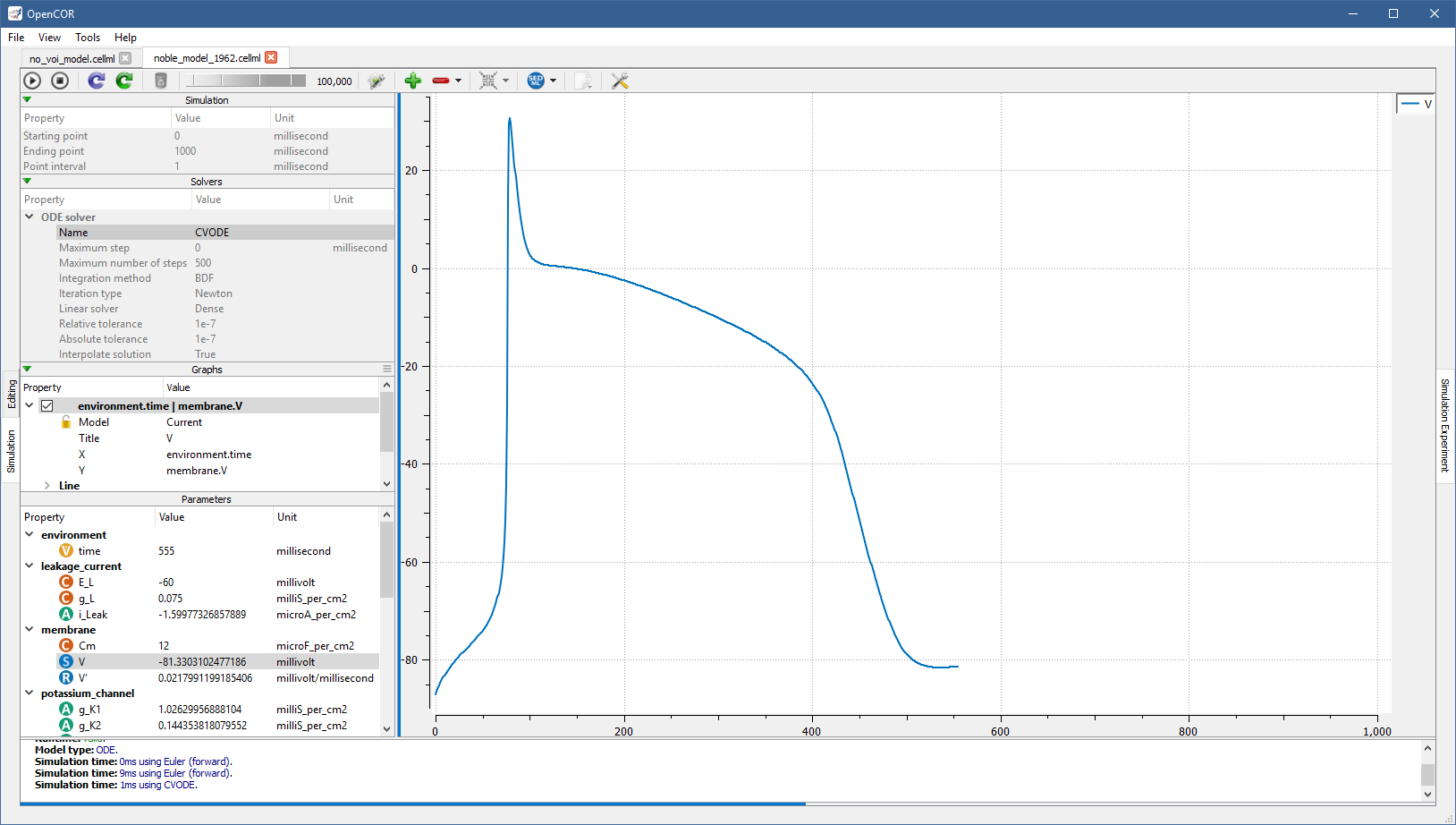

However, the simulation is so quick to run that you most probably do not have time to see its progress. Between the oxygenActionsTrashEmpty and oxygenActionsRunBuildConfigure buttons, there is a wheel that you can use to add a short delay between the plotting of two data points. Thus, by using a value of 100,000 (or a bigger/smaller value, depending on the speed of your computer), you can run the simulation and pause it at a point of interest:

../../_images/SimulationExperimentViewScreenshot09.png

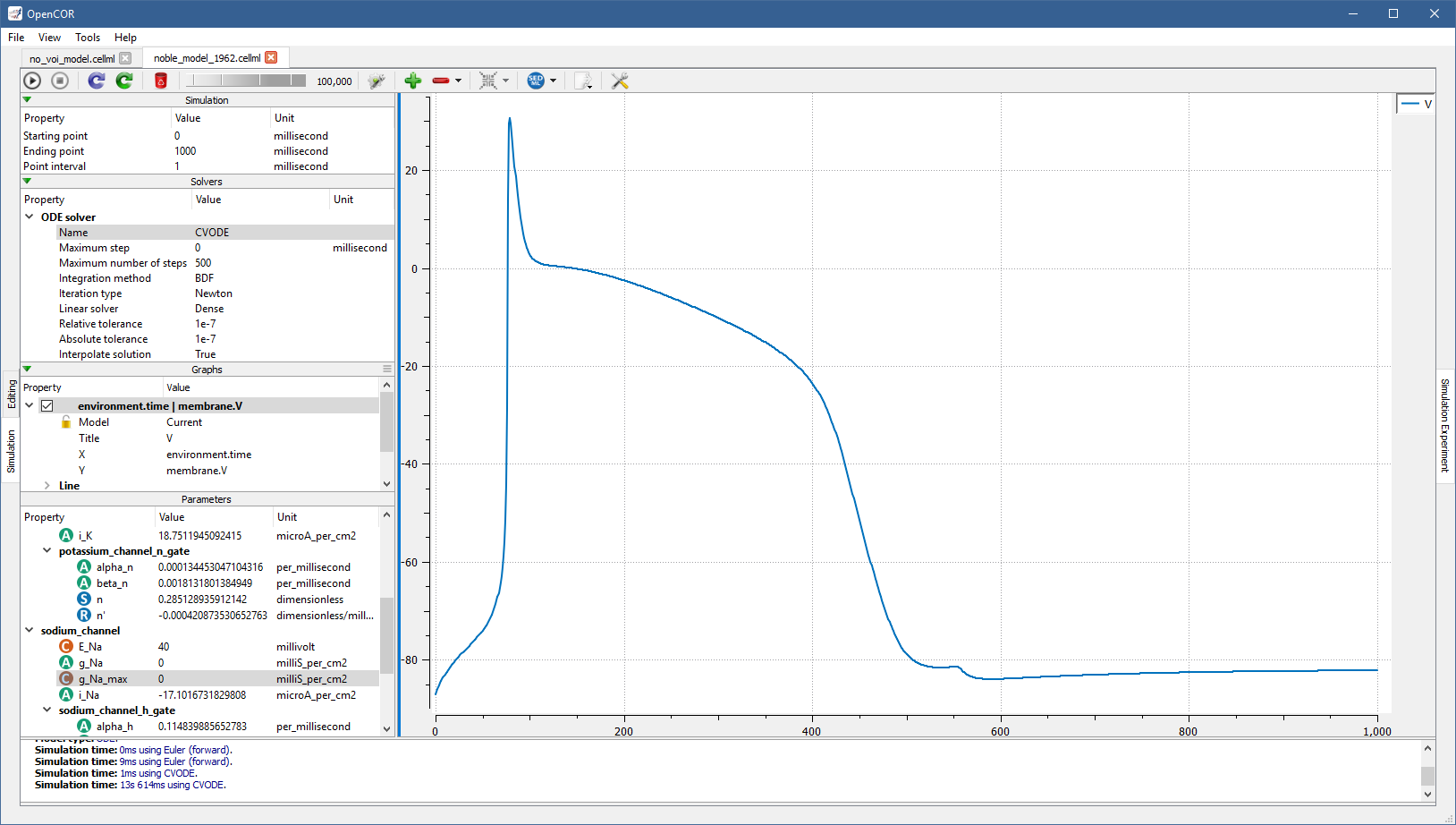

Now, you can modify any of the model parameters identified by either the state or constant icon (i.e. a state or a constant). Thus, if you set g_Na_max (from the sodium_channel component) to 0 milliS_per_cm2 then you get:

../../_images/SimulationExperimentViewScreenshot10.png

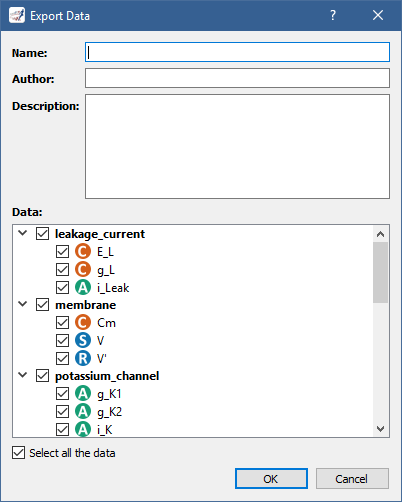

If you want, you can export some or all of the simulation data to a BioSignalML or a CSV file. To do so, click on the oxygenActionsDocumentExport button. In the case of BioSignalML, you are asked to provide some (optional) information, as well as specify which model parameters you want to export:

../../_images/SimulationExperimentViewScreenshot11.png

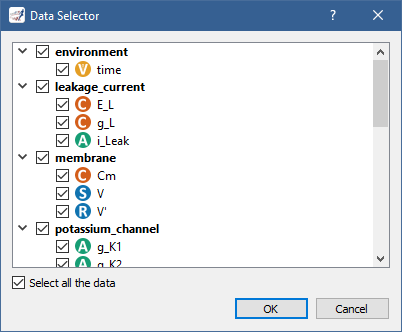

In the case of CSV, you only need to specify the model parameters you want to export:

../../_images/SimulationExperimentViewScreenshot12.png

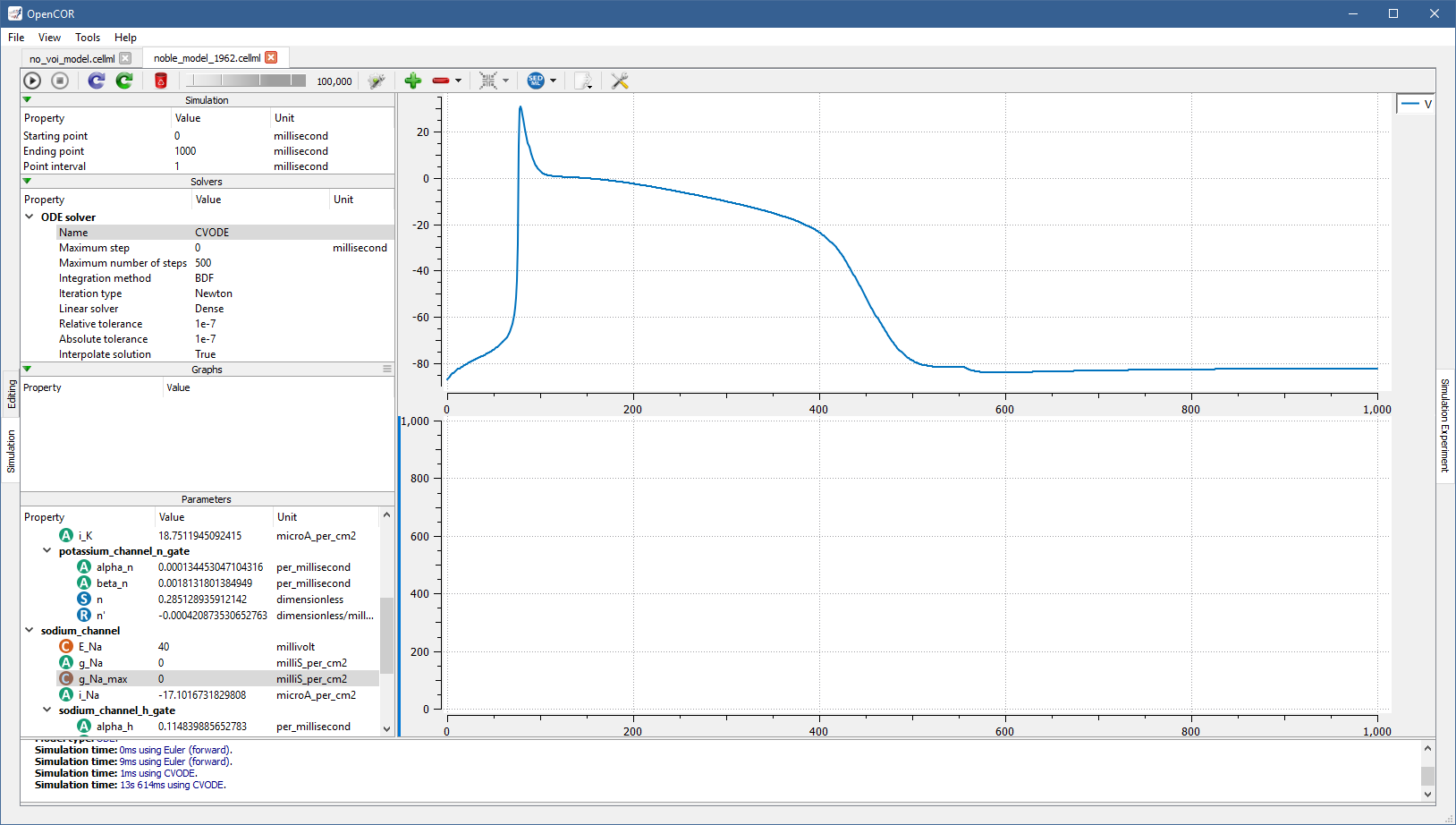

If you want to create other graphs, but do not want them on the same graph panel as the existing one, you can click on the oxygenActionsListAdd button to create a new graph panel:

../../_images/SimulationExperimentViewScreenshot13.png

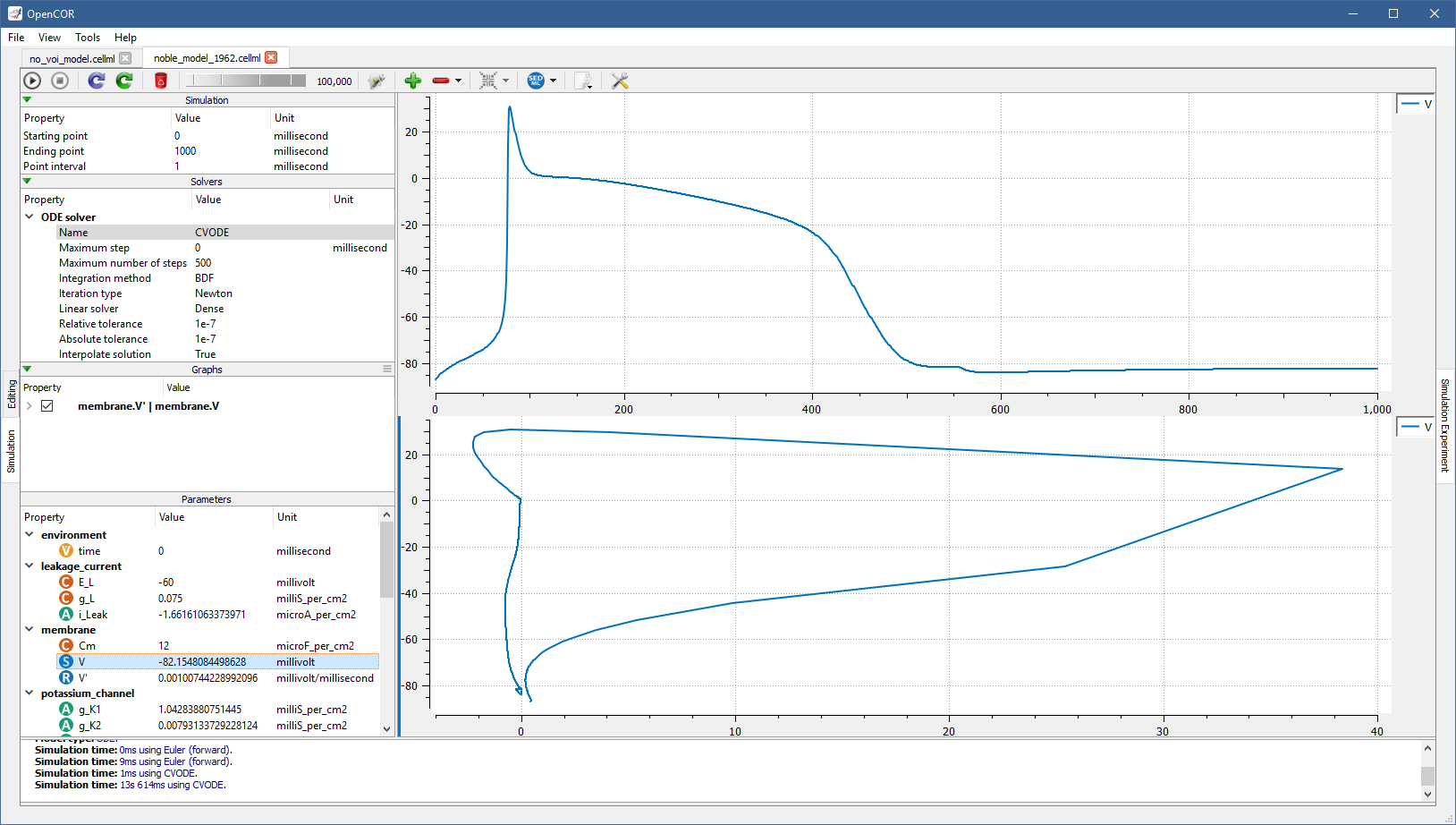

You might have noticed that the bottom graph panel has a blue vertical line to its left. This is to indicate that it is the currently selected graph panel (a graph panel can be selected by clicking on it). Something else that you might have noticed is that the Graphs section is now empty. This is because there are currently no graphs associated with the seleted graph panel. Just for illustration, you can create a graph to plot V (from the membrane component) against V' (also from the membrane component):

../../_images/SimulationExperimentViewScreenshot14.png

You can create as many graph panels (and graphs) as you want. The current graph panel or all the graph panels (but the first one) can be removed by clicking on the oxygenActionsListRemove button.

Simulate a DAE model

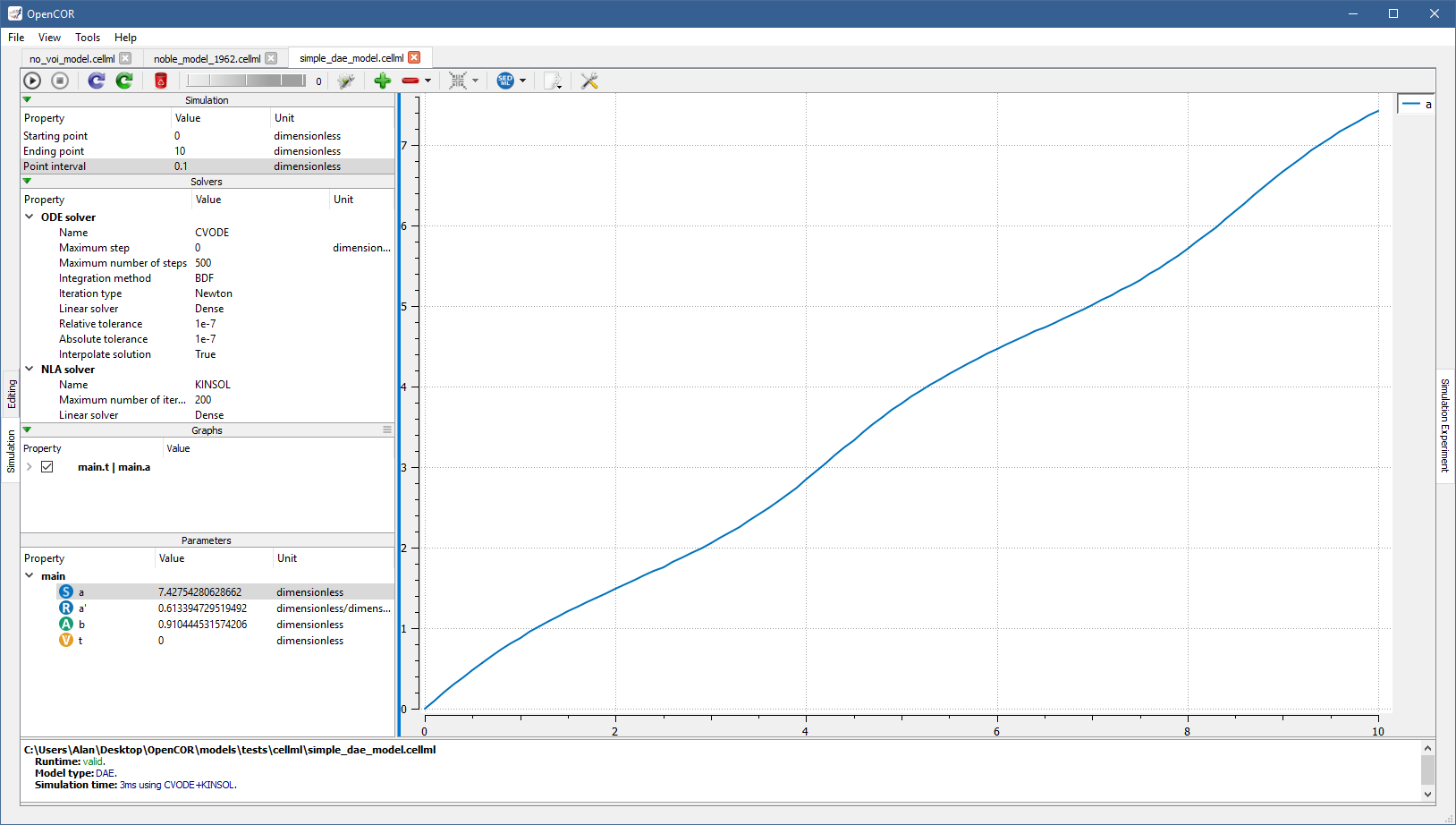

To simulate a DAE model is similar to simulating an ODE model, except that OpenCOR also needs to solve one or several systems of non-linear algebraic equations (e.g., with [OpenCOR]/models/tests/cellml/simple_dae_model.cellml):

../../_images/SimulationExperimentViewScreenshot15.png

Simulate a CellML 1.1 model

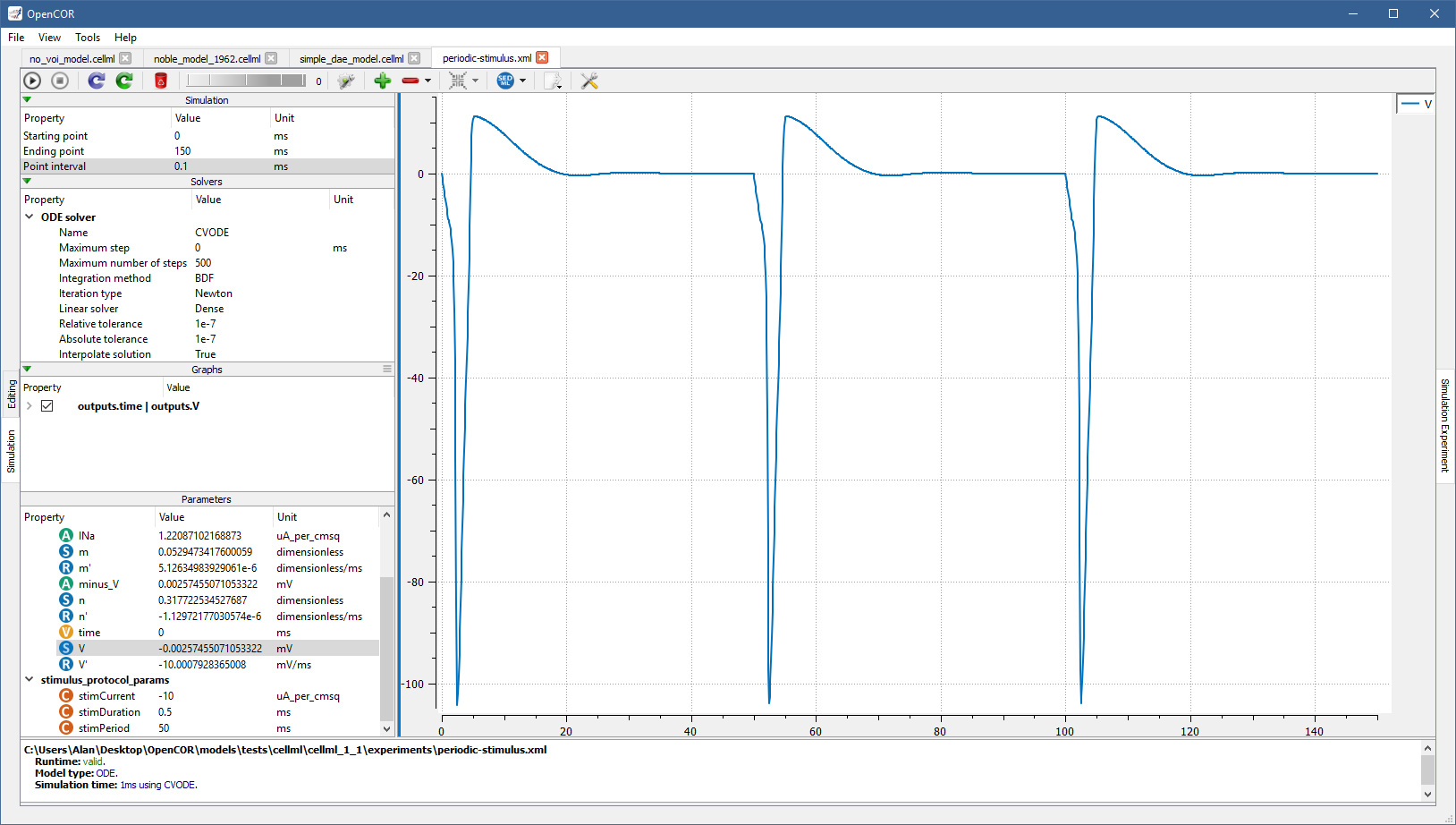

So far, we have only simulated CellML 1.0 models, but you can also simulate CellML 1.1 models, i.e. models that import units and/or components from other models (e.g., with [OpenCOR]/models/tests/cellml/cellml_1_1/experiments/periodic-stimulus.xml):

../../_images/SimulationExperimentViewScreenshot16.png

Simulate several models at the same time

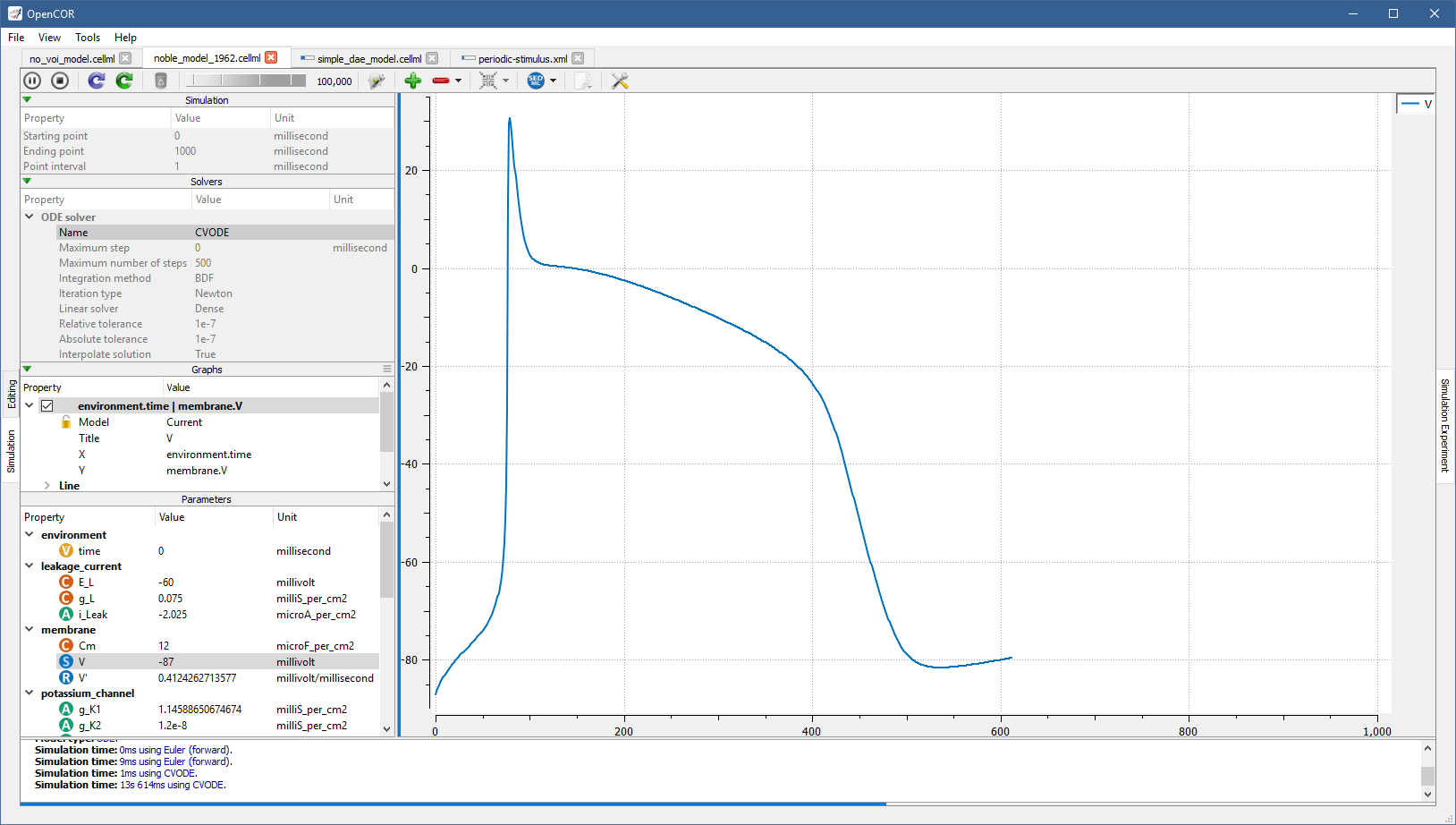

Each simulation is run in its own thread, which makes it possible to run several simulations at the same time. Simulations running in the background display a small progress bar in the top tab bar while the active simulation uses the main progress bar at the bottom of the view:

../../_images/SimulationExperimentViewScreenshot17.png

SED-ML support

An important aspect of modelling is reproducibility. To that end, a simulation can be exported to SED-ML by clicking on the sedmlLogo button. The export can then be done either to a SED-ML file or a COMBINE archive, both of which can then be re-run by OpenCOR and any SED-ML capable software (e.g., BioSimulations, SED-ML Web Tools).

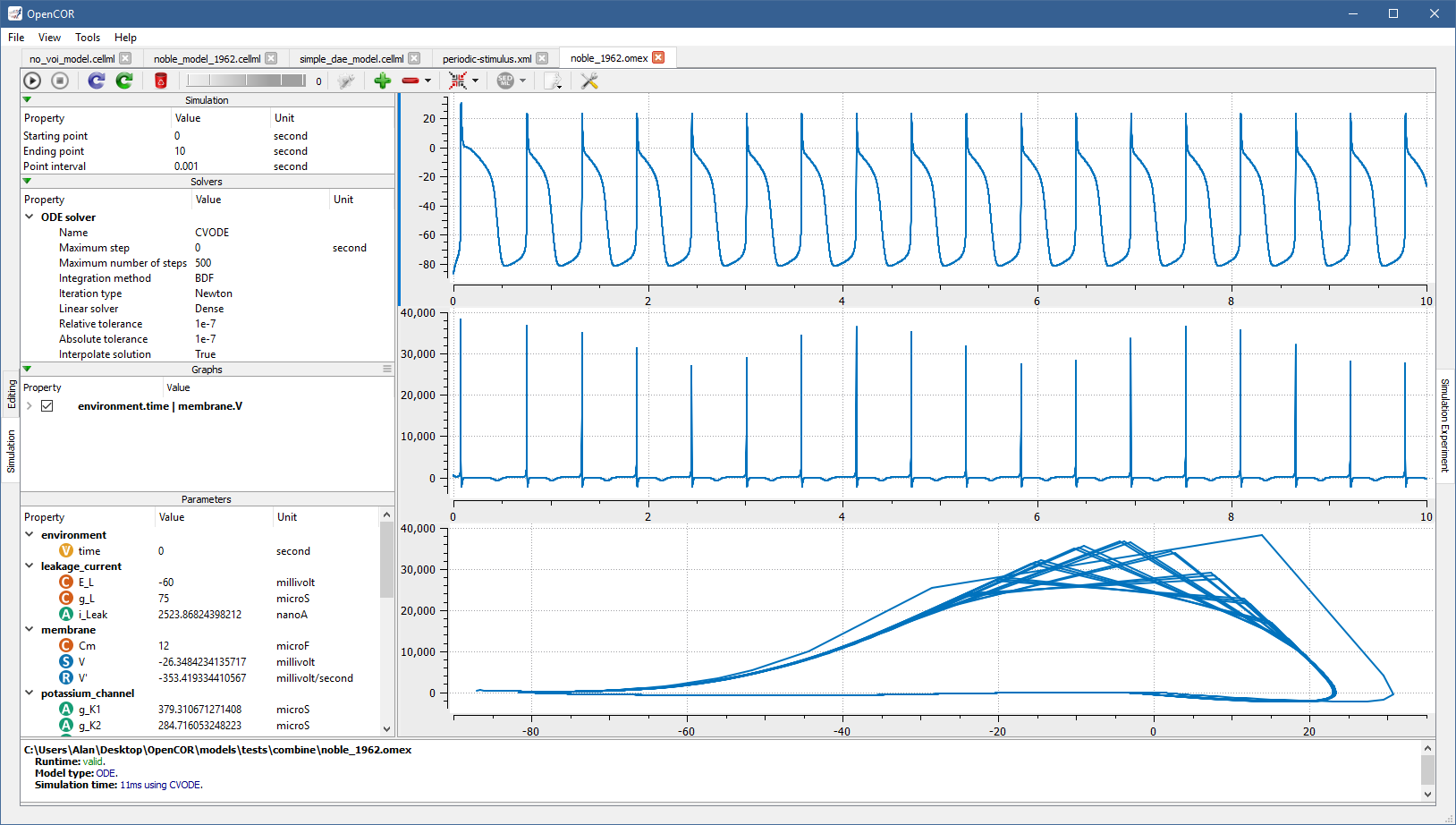

A SED-ML file (or a COMBINE archive) contains all the information needed to reproduce a simulation, i.e. a reference to the model (or even the model itself in the case of a COMBINE archive; the referenced model can be opened by clicking on the cellmlLogo button), the parameters of the simulation, the solver and its properties, the number of graph panels, and the graphs to be plotted in each graph panel. Thus, once open, a simulation can be re-run by pressing F9 or by clicking on the oxygenActionsMediaPlaybackStart button (e.g., with [OpenCOR]/models/tests/combine/noble_1962.omex):

../../_images/SimulationExperimentViewScreenshot18.png

Please note that changes to model parameters (either before or in the middle of a simulation) are not currently supported, and are therefore ignored, if present.

Customise graphs and graph panels

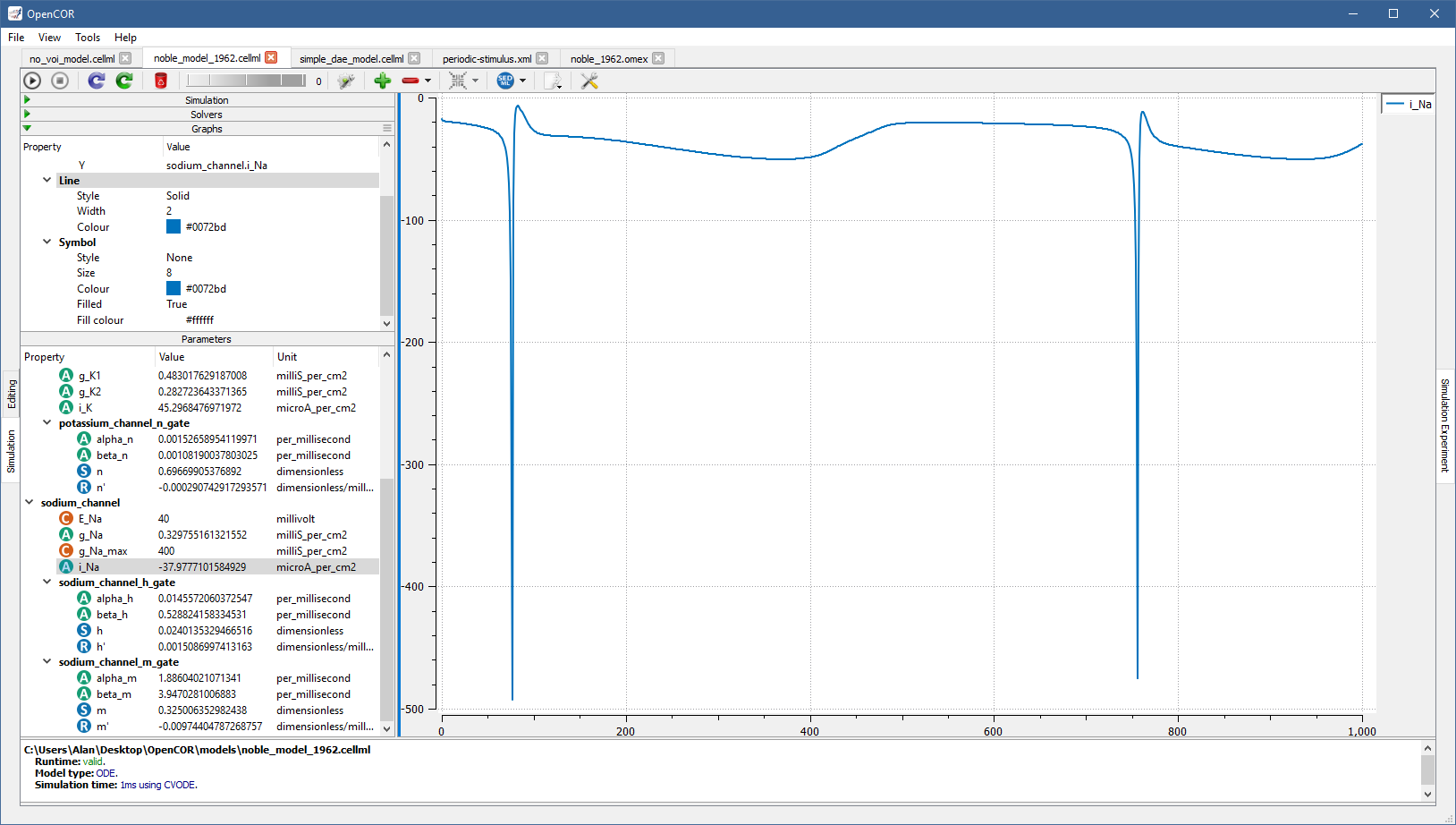

By default, the line of a graph is two-pixel wide and blue, as can be seen when plotting i_Na against the variable of integration using [OpenCOR]/models/noble_model_1962.cellml:

../../_images/SimulationExperimentViewScreenshot19.png

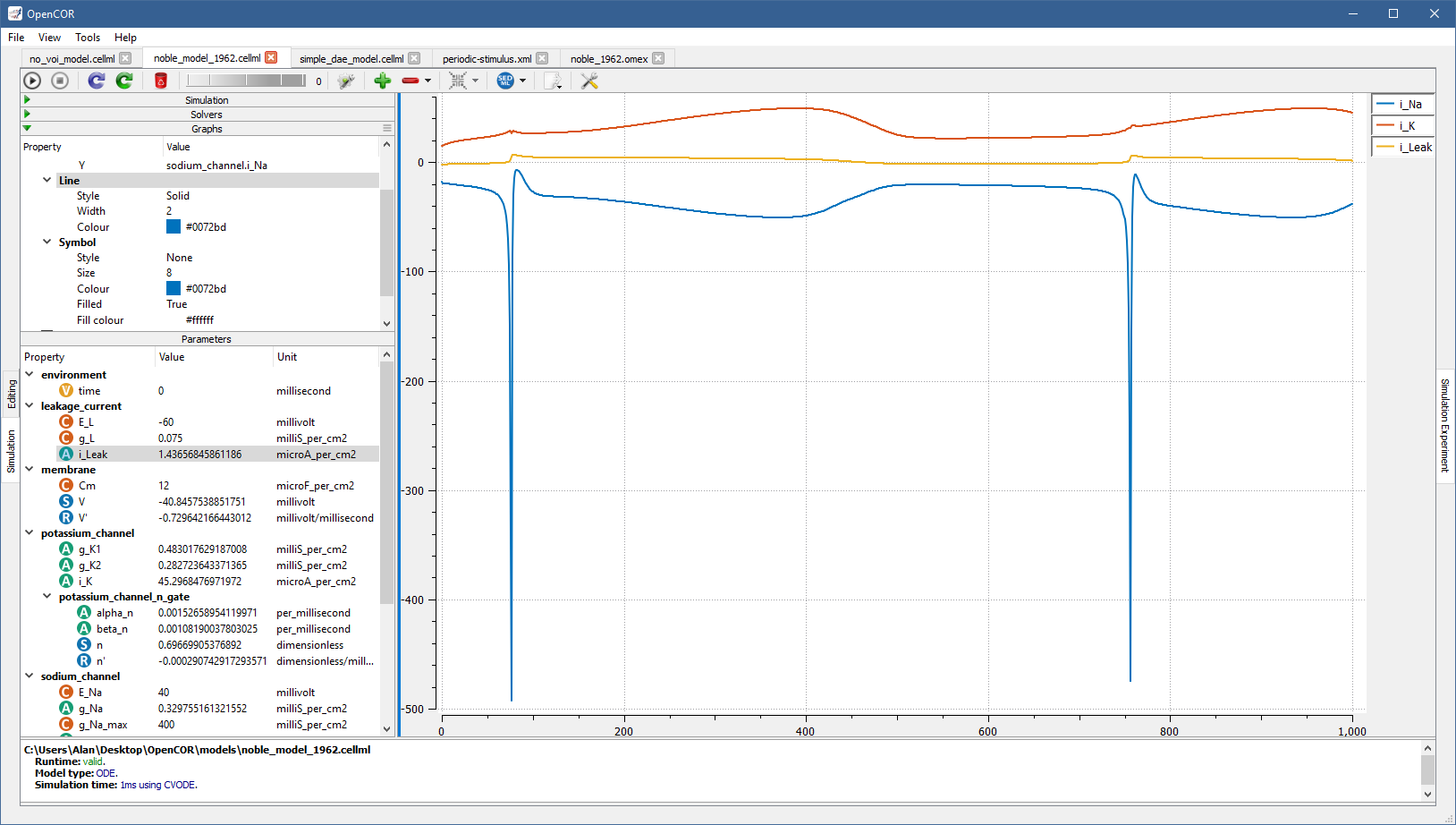

However, subsequent graphs use a different line colour. For example, if you plot i_K and i_Leak against the variable of integration, you get:

../../_images/SimulationExperimentViewScreenshot20.png

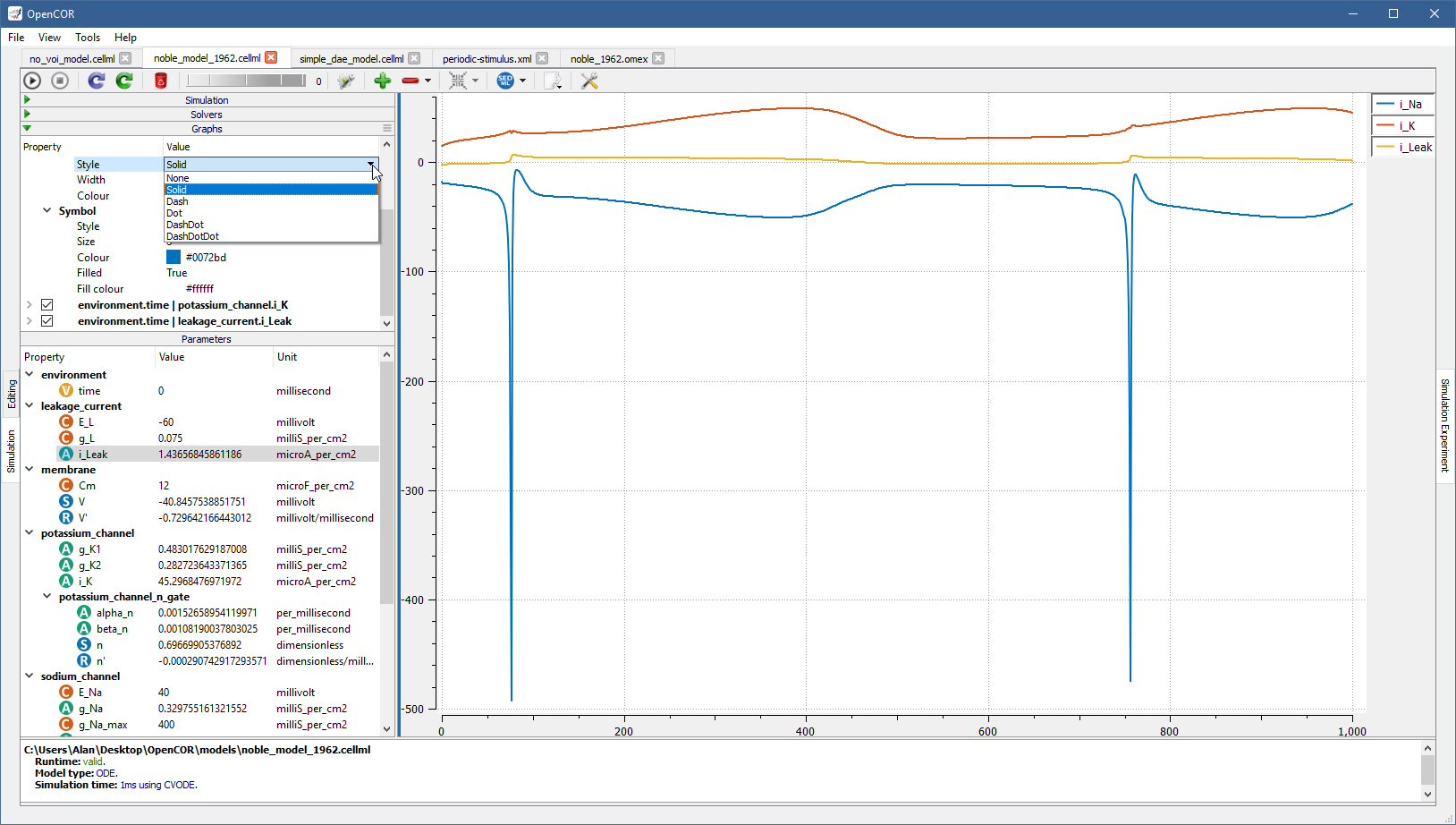

The line can be further customised by changing the value of one or several of its properties (Style, Width, and Colour) in the Graphs section. Possible values for Style are None, Solid, Dash, Dot, DashDot, and DashDotDot:

../../_images/SimulationExperimentViewScreenshot21.png

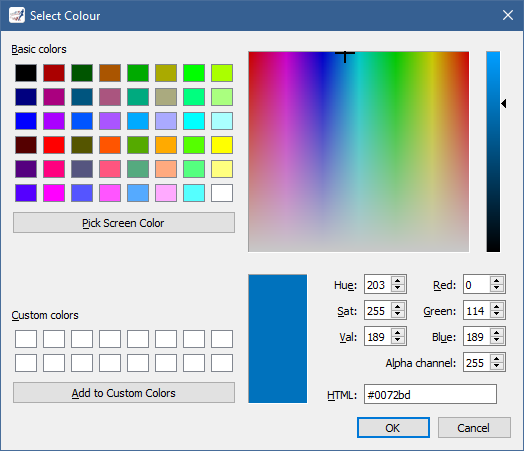

Colour can be changed manually by providing an RGB or RGBA value, i.e. #RRGGBB or #RRGGBBAA with RR, GG, BB, and AA corresponding to the value of the red, green, blue, and alpha channel of the colour, respectively. Each value consists of two hexadecimal digits between 0 and f. For example, the blue colour used for the first graph has an RGB value of #0072bd. However, an easier way to change Colour is by double clicking on the square next to its value. This brings up a colour dialog, from which you can choose the colour you want to use:

../../_images/SimulationExperimentViewScreenshot22.png

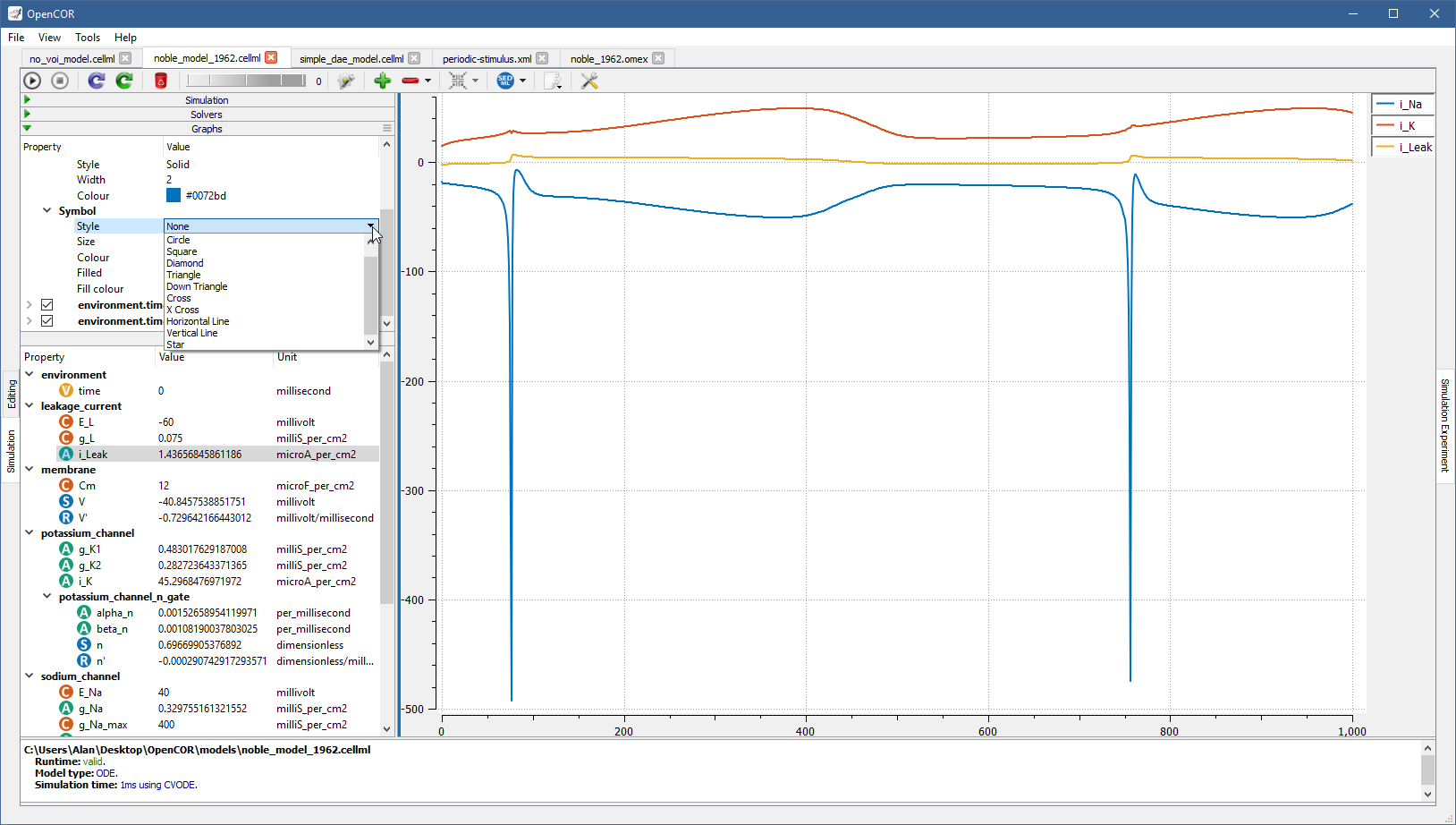

In addition to a line, a graph can have a symbol rendered at each of its data points. As for a line, a symbol can be customised by changing the value of one or several of its properties (Style, Size, Colour, Filled, and Fill colour). Possible values for Style are None, Circle, Square, Diamond, Triangle, Down Triangle, Cross, X Cross, Horizontal Line, Vertical Line, and Star:

../../_images/SimulationExperimentViewScreenshot23.png

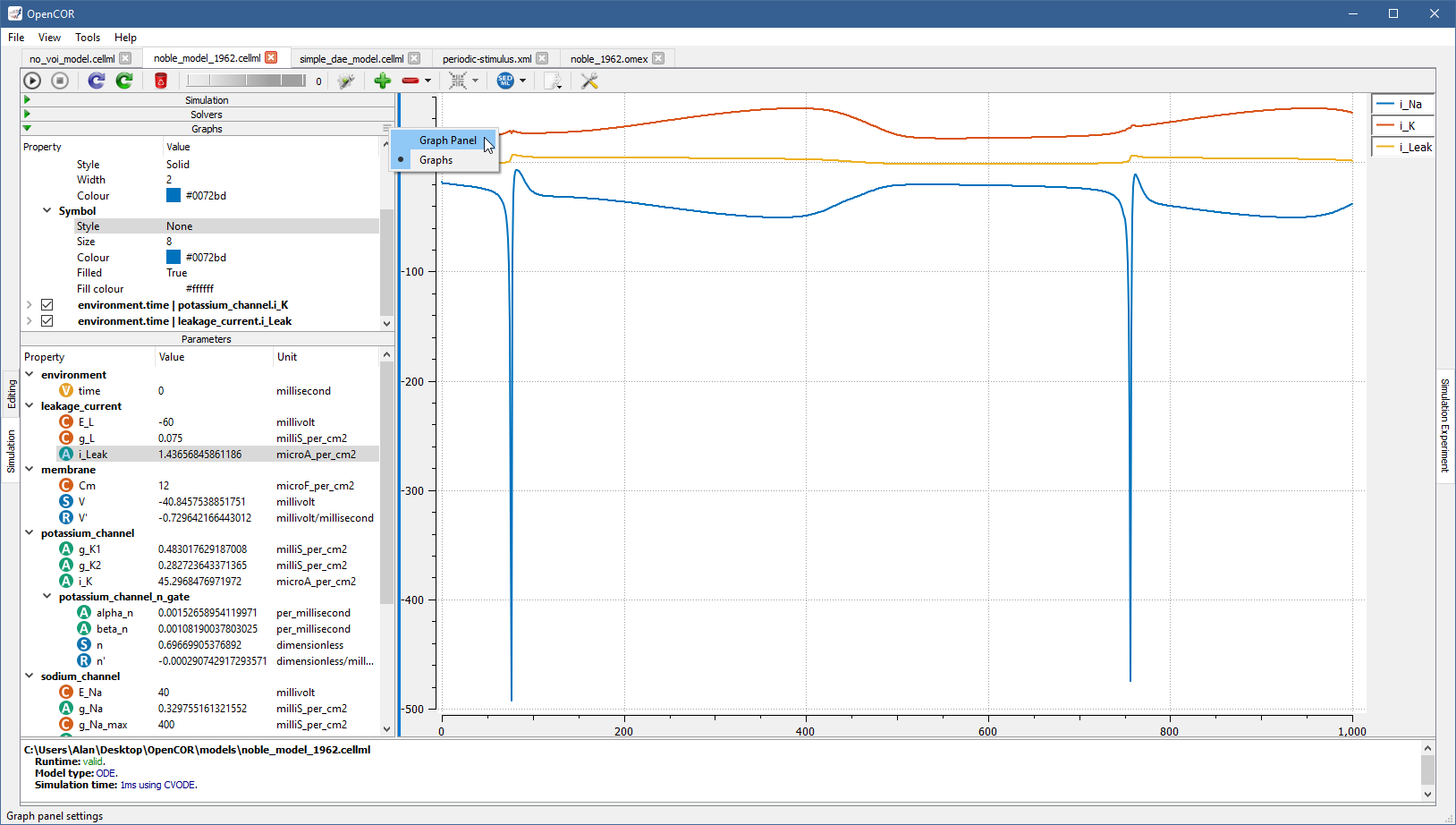

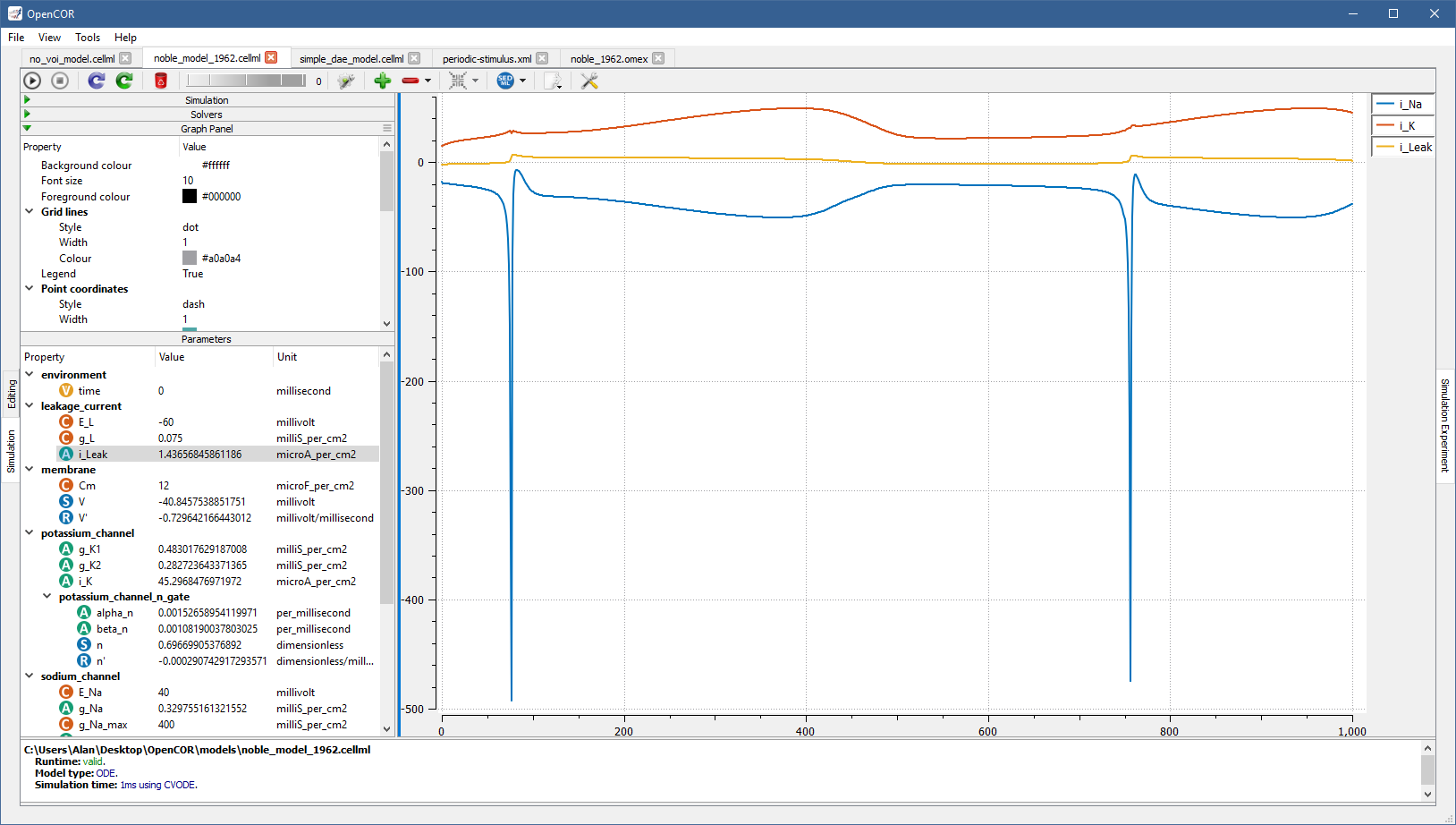

A graph panel can also be customised, but for this you need to switch to the Graph Panel section by clicking in the top-right of the Graphs section. This brings up a context menu allowing you to switch between the Graphs and Graph Panel sections:

../../_images/SimulationExperimentViewScreenshot24.png ../../_images/SimulationExperimentViewScreenshot25.png

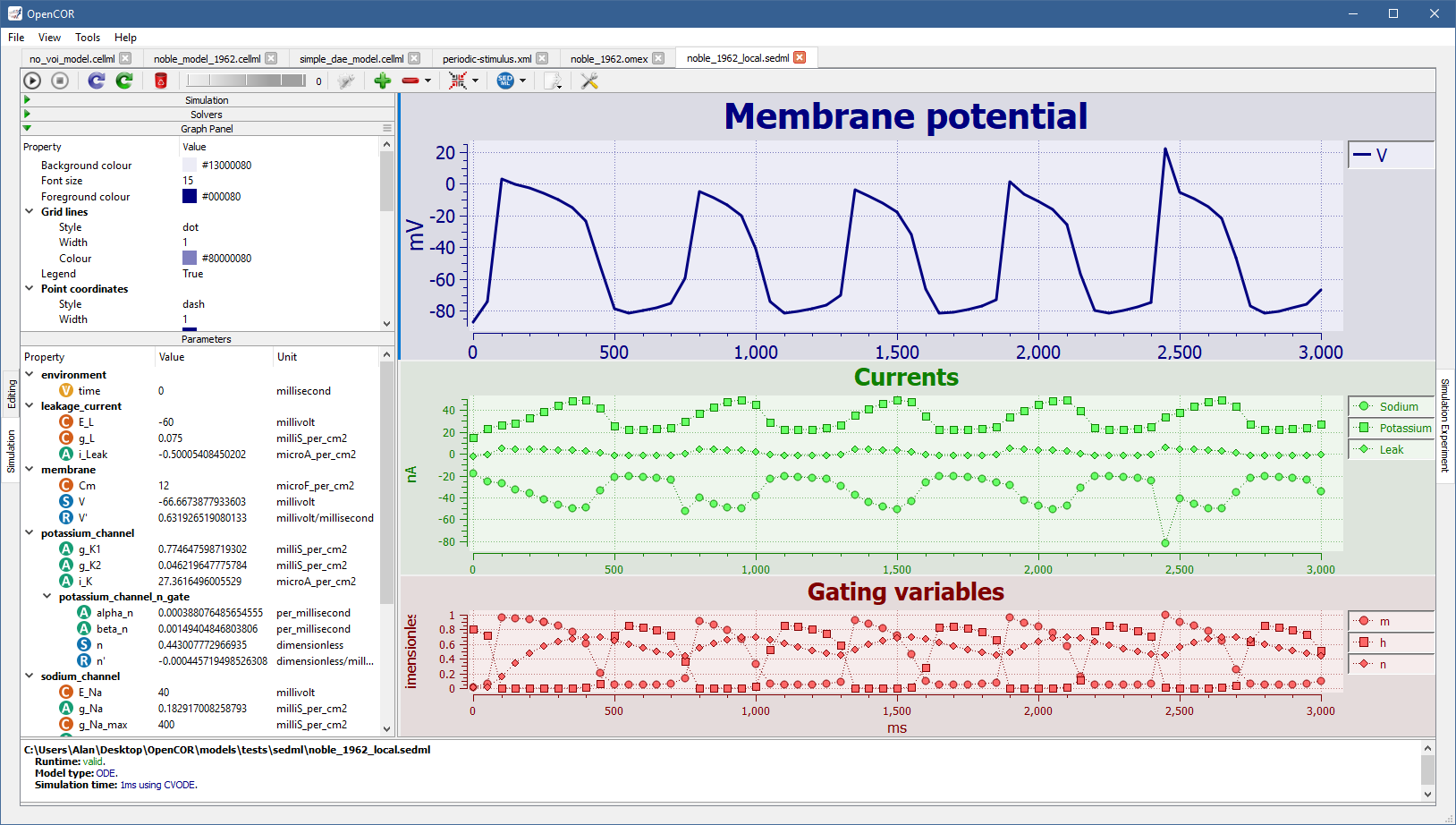

Many aspects of a graph panel can be customised and this includes various types of colours, styles, widths, etc., as well as whether the legend should be shown, a logarithmic scale used for the X and/or Y axes, etc., as illustrated by running [OpenCOR]/models/tests/sedml/noble_1962_local.sedml:

../../_images/SimulationExperimentViewScreenshot26.png

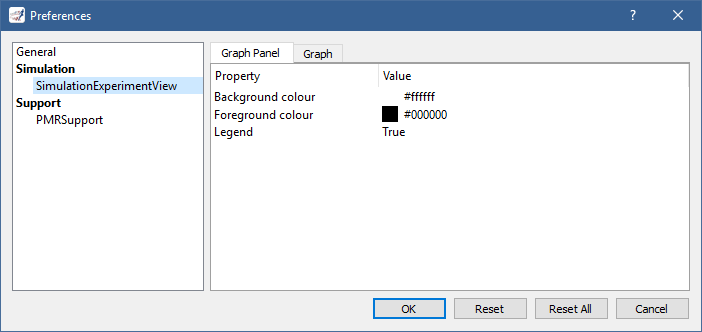

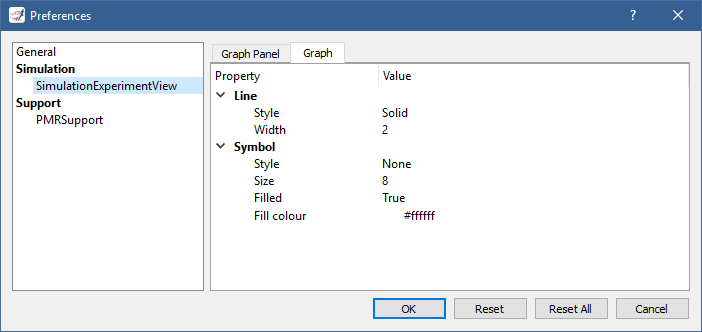

Note that you can specify some default settings for graphs and graph panels by clicking on the oxygenCategoriesPreferencesSystem button in the tool bar, or by selecting the Tools | Preferences... menu item and then the SimulationExperimentView section:

../../_images/SimulationExperimentViewScreenshot27.png ../../_images/SimulationExperimentViewScreenshot28.png

Plotting area

The plotting area offers several features that can be activated by:

Tool bar

toolBarOxygenActionsMediaPlaybackStart Run the simulation
toolBarOxygenActionsMediaPlaybackPause Pause the simulation
toolBarOxygenActionsMediaPlaybackStop Stop the simulation
toolBarResetStateModelParameters Reset the state model parameters
toolBarOxygenActionsViewRefresh Reset all the model parameters
toolBarOxygenActionsTrashEmpty Clear the simulation data
toolBarOxygenActionsRunBuildConfigure Enable/disable the development mode
toolBarOxygenActionsListAdd Add a graph panel
toolBarOxygenActionsListRemove Remove the current graph panel or all the graph panels
toolBarCellmlLogo Open the referenced CellML file
toolBarSedmlLogo Export the simulation to SED-ML
toolBarOxygenActionsDocumentImport Import some data
toolBarOxygenActionsDocumentExport Export the simulation results
toolBarOxygenCategoriesPreferencesSystem Preferences for the Simulation Experiment view
